Pro220K™ Tone and Filter Probe Kit
The Armada Technologies Pro220K™ Advanced AC Filtered Tone & Probe Kit is a professional wire-tracing solution designed to help contractors and technicians quickly identify and locate the far-end termination of a specific wire or cable. By combining the Pro110™ Tone Generator with the Pro210F™ Advanced Filter Tone Probe, the kit makes it easier to trace individual wires in bundles, panels, communication systems, and other wiring environments.
The Pro220K™ is built with advanced features that improve performance in challenging field conditions. Its AC noise rejection filter greatly reduces buzzing and humming caused by nearby electrical sources, helping technicians distinguish the intended tracing signal from unwanted interference.
The Pro210F™ probe also features an integrated LED headlight for illuminating dark work areas, while its metal/plastic combination tip is designed to provide strong signal response while helping protect sensitive equipment. Powered by AA batteries, the probe delivers 250+ hours of operating time, making it a dependable tool for extended field use.
Image Gallery
Overview
The Pro220K™ works by placing a distinctive tone onto a wire with the Pro110™ tone generator and then following that tone with the Pro210F™ probe at the opposite end of the cable.

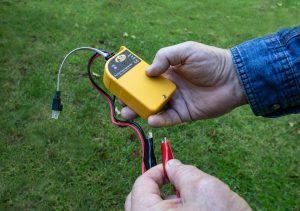

The Pro110™ connects to the wire using its attached alligator clips or RJ11 plug and generates the tracing signal. The technician then takes the Pro210F™ to the other end of the wiring and listens for its distinctive beep-beep-beep tone. The wire producing the strongest signal is the wire connected to the tone generator, allowing the technician to identify its termination point.
The Pro220K™ is particularly useful when wires are bundled together or when multiple similar cables make it difficult to determine which wire goes where. Its AC noise rejection technology helps improve signal clarity around electrical interference, while the LED probe headlight provides added visibility in dark panels, cabinets, ceilings, crawlspaces, and other confined areas.
Product Features
- Advanced tone and probe kit — Combines the Pro110™ Tone Generator and Pro210F™ Advanced Filter Tone Probe
- Wire termination identification — Helps locate where a specific wire or cable terminates
- AC noise rejection filter — Greatly reduces buzzing and humming caused by nearby electrical sources
- LED probe headlight — Illuminates dark work areas while tracing wires
- Metal/plastic combination probe tip — Provides strong signal response while helping protect sensitive hardware
- 250+ hours of operation — AA battery power provides extended probe operating time
- Alligator clip connection — Allows the tone generator to connect directly to individual wires
- RJ11 connection — Provides convenient connection for compatible telephone/communication wiring
- Audible tracing tone — Follow the generator’s distinctive beep-beep-beep signal
- Strong signal identification — The loudest signal indicates the wire connected to the tone generator
- Field-ready design — Built for contractors and technicians performing routine wire tracing and identification
- Useful in electrically noisy environments — Filtering helps make the tracing tone easier to distinguish
Applications
Wire & cable identification, telephone & communication wiring, electrical troubleshooting, control & low voltage wiring, security & communication systems
In the Box
Pro110 Tone Generator, Pro210F Tone Probe, Case
Product Documentation
Product FAQ
The Pro220K™ is used to identify and trace individual wires and cables and locate their termination points. It is especially useful when several similar wires are bundled together or difficult to follow visually.
The AC noise rejection filter is designed to reduce buzzing and humming caused by electrical interference, making the generator’s tracing tone easier to hear in electrically noisy environments.
Connect the Pro110™ to the wire you want to identify, then use the Pro210F™ probe at the other end. The wire producing the loudest tracing signal is the wire connected to the tone generator.
Yes. The Pro110™ includes an RJ11 connection, making the kit useful for compatible telephone and communication wiring applications.
