Pro95i™ True RMS Milliamp Clamp Multimeter
The Armada Technologies Pro95i™ True RMS Milliamp Clamp Meter is a precision diagnostic tool designed specifically for 2-wire irrigation system troubleshooting and electrical diagnostics. Built for irrigation professionals, the Pro95i™ combines extremely sensitive current measurement, True RMS accuracy, high resistance capability, and automatic ranging to help technicians identify problems quickly—without unnecessarily opening splices or cutting underground wires.
With a 50-microamp minimum sensitivity and 1-microamp resolution, the Pro95i™ can detect extremely small changes in current that may indicate problems within a 2-wire irrigation system. Its True RMS technology provides accurate readings across a wide range of electrical signals, while the dedicated Max Voltage function helps capture slower-changing signals, including the approximately 1 Hz signals commonly associated with 2-wire irrigation systems.
The Pro95i™ measures AC and DC voltage, AC current, and resistance up to 600kΩ, giving technicians multiple diagnostic capabilities in a single compact meter. Auto-ranging simplifies operation by automatically selecting the appropriate measurement range, while the backlit digital display makes readings easy to see in dim equipment boxes and other low-light field conditions.
Designed with the irrigation professional in mind, the Pro95i™ provides the sensitivity and precision needed to troubleshoot modern 2-wire systems efficiently and confidently.
Image Gallery
Overview
The Pro95i™ was developed to address one of the biggest challenges in 2-wire irrigation troubleshooting: finding electrical problems without unnecessarily disturbing the system.
Traditional meters may not provide the sensitivity or resolution necessary to accurately diagnose the very small current changes found in some 2-wire irrigation systems. The Pro95i™ is specifically designed to detect these low-level signals, with sensitivity down to 50 microamps and resolution down to 1 microamp.
Its True RMS measurement technology provides accurate readings on a broad range of electrical signals, while the Max Voltage function allows technicians to capture slower signals that may otherwise be difficult to observe with a standard meter.

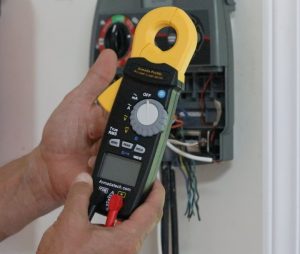

The clamp design also allows current measurements to be taken without opening splices or cutting wires, helping technicians troubleshoot systems more efficiently and with less disruption.
With auto-ranging operation, a backlit digital display, measurements for voltage, current, and resistance, and a durable field-ready design, the Pro95i™ gives irrigation professionals a specialized diagnostic meter built around the realities of 2-wire system service.
Product Features
- Designed for 2-wire irrigation — Specialized for troubleshooting and diagnosing modern 2-wire sprinkler systems
- True RMS technology — Provides accurate measurement across a wide range of electrical signals
- Ultra-sensitive current measurement — Detects current as low as 50 microamps
- 1-microamp resolution — Provides extremely fine measurement for detailed diagnostics
- Max Voltage function — Captures slower-changing voltage signals, including approximately 1 Hz 2-wire signals
- Non-invasive troubleshooting — Helps identify 2-wire faults without opening splices or cutting wires
- AC and DC voltage measurement — Provides flexible electrical testing capabilities
- AC current measurement — Measures low-level current for irrigation diagnostics
- Resistance measurement up to 600kΩ — Helps identify resistance-related problems and circuit conditions
- Auto-ranging — Automatically selects the appropriate measurement range
- Backlit digital display — Easy-to-read measurements in dim irrigation valve boxes and equipment areas
- Durable construction — Designed for demanding field conditions
- Specialized irrigation diagnostic tool — Built around the needs of sprinkler and irrigation professionals
Applications
2-wire irrigation troubleshooting, Irrigation controller diagnostics, Solenoid and valve troubleshooting, Low-current fault detection, 2-wire circuit testing, Irrigation splice and circuit diagnostics, AC/DC electrical testing, Resistance and continuity troubleshooting
In the Box
Pro95i, Leads, Case, 2 ‘AA’ Batteries, Detachable Alligator Clips
Product Documentation
Product FAQ
The Pro95i™ is a specialized True RMS milliamp clamp meter designed primarily for troubleshooting 2-wire irrigation systems. It helps technicians diagnose electrical conditions and identify potential faults without unnecessarily opening splices or cutting wires.
True RMS, or True Root Mean Square, is a measurement method designed to provide accurate readings on a wider variety of electrical waveforms than traditional averaging meters. This makes True RMS particularly useful when the electrical signal isn’t a simple sine wave.
The Max Voltage function captures slower-changing voltage signals that can be difficult to observe with a standard measurement. This is especially useful for detecting approximately 1 Hz signals used in some 2-wire irrigation systems.
The clamp allows technicians to measure AC current without needing to disconnect or cut the conductor, which can make field diagnostics faster and less disruptive.
