Pro220A™ Tone & Filter Probe Kit
The Armada Technologies Pro220A™ Advanced AC Filtered CATV Tone and Probe ID Kit is a professional wire and cable identification system designed specifically for CATV and coaxial cable technicians. Built around the needs of cable TV professionals, the Pro220A combines a specialized CATV tone generator with an advanced AC-filtered tone probe to make cable identification faster and easier—even in environments with significant electrical interference.
The Pro110A™ CATV Tone Generator features both male and female F-connectors, providing a convenient connection directly to compatible coaxial cable. It also supports RJ11 and alligator clip connections for added versatility. Built-in short-circuit testing provides visible and audible indications to help technicians quickly identify potential cable problems.
The Pro210F™ AC Filtered Tone Probe is designed to make tracing easier in electrically noisy environments. Its AC noise filtering technology helps reduce unwanted buzzing and interference, while the high-powered LED headlight illuminates dark cable cabinets, equipment rooms, crawlspaces, and other difficult work areas.
Both units use commonly available AA batteries and provide 250+ hours of operation, making the Pro220A a practical, field-ready solution for CATV technicians who need dependable cable identification day after day.
Image Gallery
Overview
The Pro220A uses a simple two-piece system to identify and trace coaxial and other compatible cables.

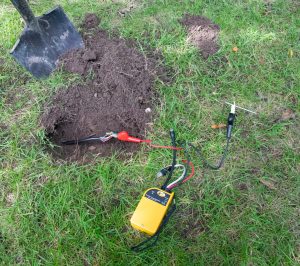

The Pro110A™ Tone Generator connects to the cable and places a distinctive tracing signal onto the line. Its male and female F-connectors make it particularly convenient for CATV applications, while RJ11 and alligator clip connections provide additional flexibility. At the opposite end of the cable, the Pro210F™ AC Filtered Tone Probe detects the tracing signal. The technician can follow the strongest signal to identify the correct cable or termination point.
One of the Pro220A’s biggest advantages is its AC noise filtering. Electrical interference can make traditional tone probes difficult to use, especially around active equipment and wiring. The Pro210F™ is designed to reduce this unwanted buzz, helping technicians hear the intended tracing signal more clearly.
The probe also includes a bright automatic LED headlight, adjustable volume, headset jack, low-battery indicator, and a durable metal/plastic combination tip. Together, these features make the Pro220A a versatile cable-identification tool for CATV facilities, service vehicles, and field technicians.
Product Features
- Designed specifically for CATV — Built around the needs of cable TV and coaxial cable technicians
- Advanced tone and probe system — Provides an efficient method for identifying and tracing cables
- AC noise filtering — Helps reduce unwanted electrical buzzing and interference
- 250+ hours of battery life — Both the tone generator and probe use AA batteries
- CATV-friendly connections — Includes male and female F-connectors
- Multiple connection options — Supports F-connectors, RJ11, and alligator clips
- Built-in cable testing — Tone generator provides short-circuit testing with visual and audible indications
- LED illumination — Bright probe headlight helps illuminate dark work areas
- Headset compatible — Provides an additional option for listening to the tracing signal
- Adjustable volume — Allows technicians to control probe sensitivity and listening level
- Low-battery indicator — Helps monitor available battery power
- Field-ready design — Built for technicians working in demanding service environments
Applications
CATV cable identification, coaxial cable tracing, cable termination identification, CATV installation and service, cable cabinet troubleshooting, residential cable troubleshooting, commercial cable system maintenance
In the Box

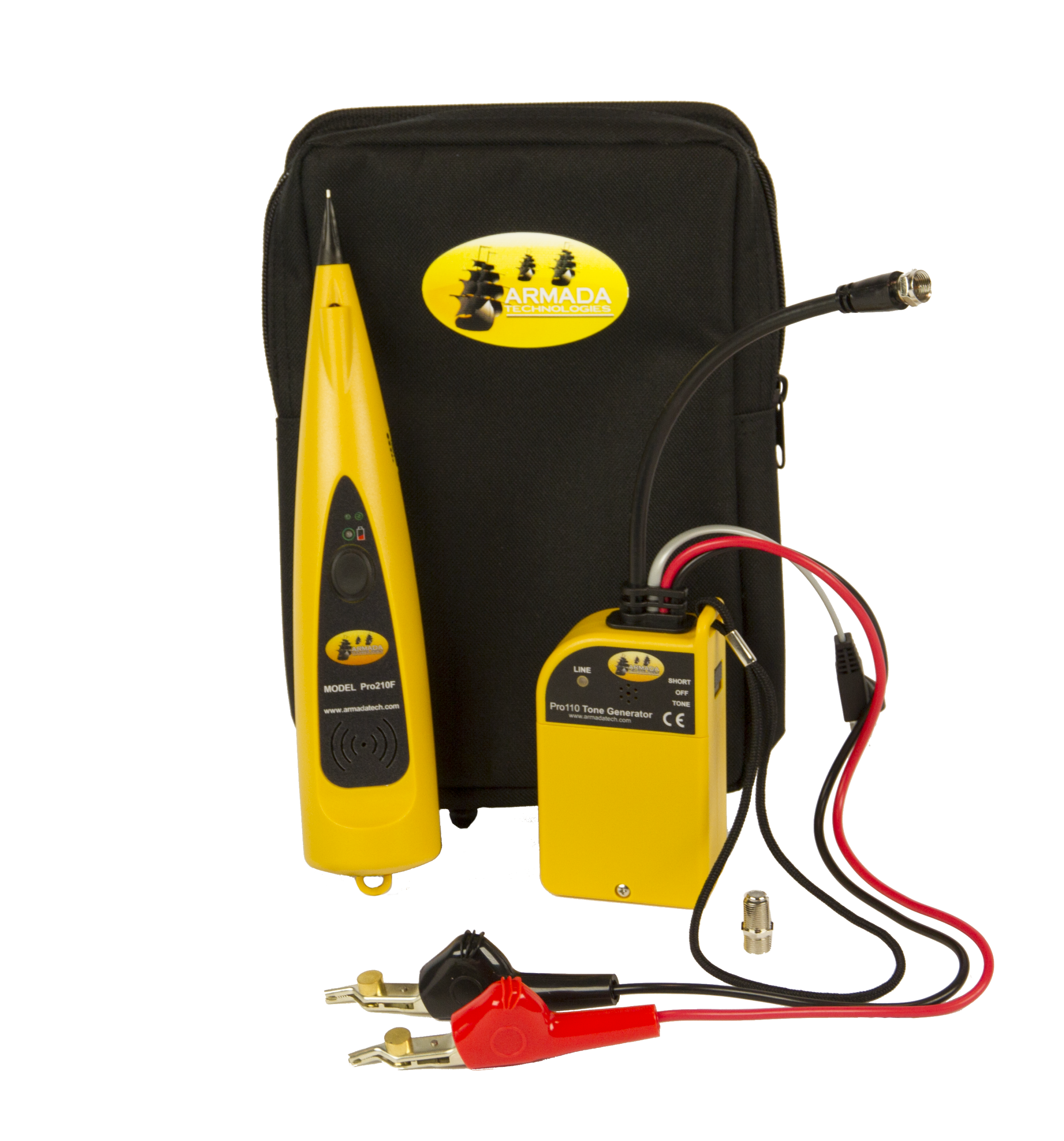

Pro110A, Pro210F, Type F Adapter, Case
Product Documentation
Product FAQ
The Pro220A is designed to identify, trace, and troubleshoot CATV and coaxial cables. It uses a tone generator and probe to help technicians quickly determine which cable they are working with.
Yes. The Pro220A was specifically designed for cable TV applications, including convenient male and female F-connector connections.
The Pro210F is the AC Filtered Tone Probe included with the Pro220A kit. It detects the tracing tone transmitted by the Pro110A and helps technicians identify the correct cable.
The Pro220A is ideal for CATV technicians, cable installers, field service technicians, network maintenance personnel, and cable system contractors who regularly identify and troubleshoot coaxial and related wiring.
